Point features are represented on the map by a small circle. Points are features that do not have an area or distance to them, such as wells and sinkholes.

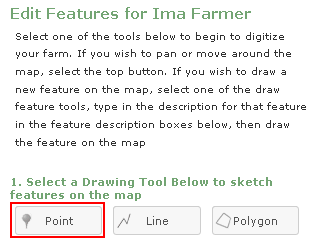

To draw a point feature, select the “Draw Point” tab, then place your cursor on the map at the location of the feature you wish to add and left click.

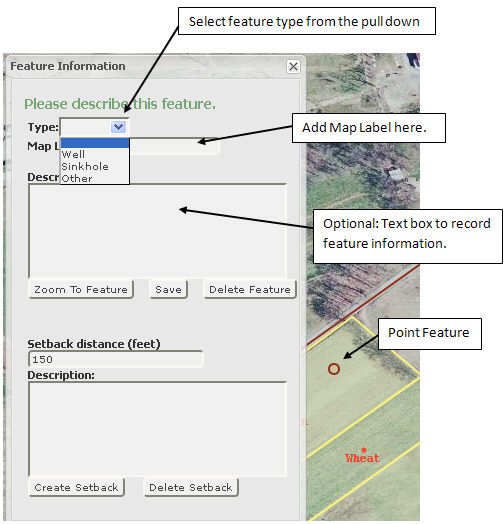

This will place a red circle on the map and Feature Information window will open. Choose the type of feature from the drop down list, add a map label and a description (optional) and save the feature. After saving the feature, you can add a setback. Close the "Feature Information" window before proceeding onto the next feature.
